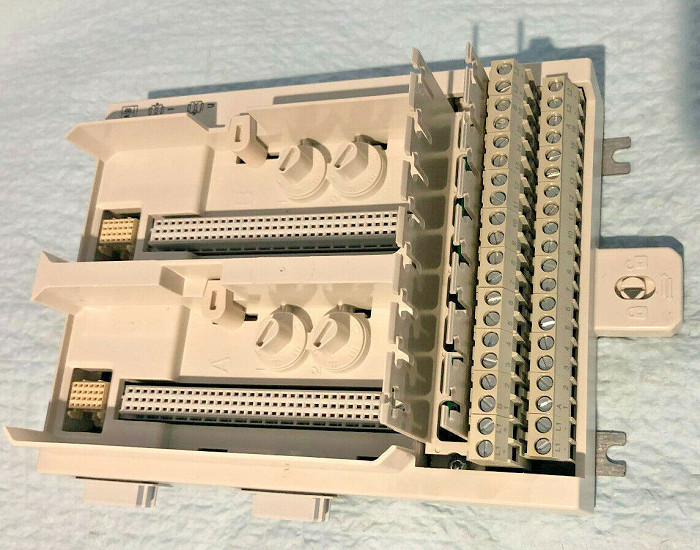

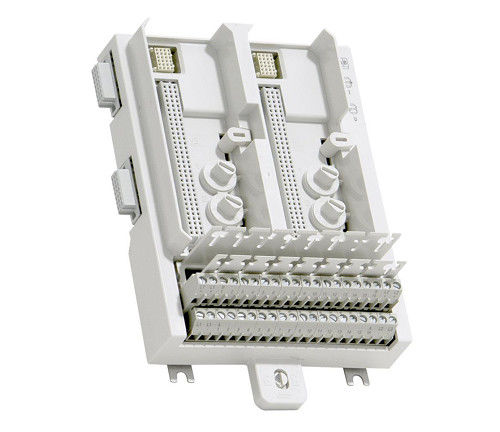

ABB S800 I/O Module Termination Unit TU844 MTU Terminal block 50 V 3BSE022460R1 Redundant 8 Channels

Product Description:

The TU844 MTU can have up to 8 I/O channels and 2+2 process voltage connections. Each channel has two I/O connections and one ZP connection. Input signals are connected via individual shunt sticks, TY801. The shunt stick is used to choose between voltage and current input. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel.

The MTU distributes the two ModuleBuses, one to each I/O module and to the next MTU. It also generates the correct address to the I/O modules by shifting the outgoing position signals to the next MTU.

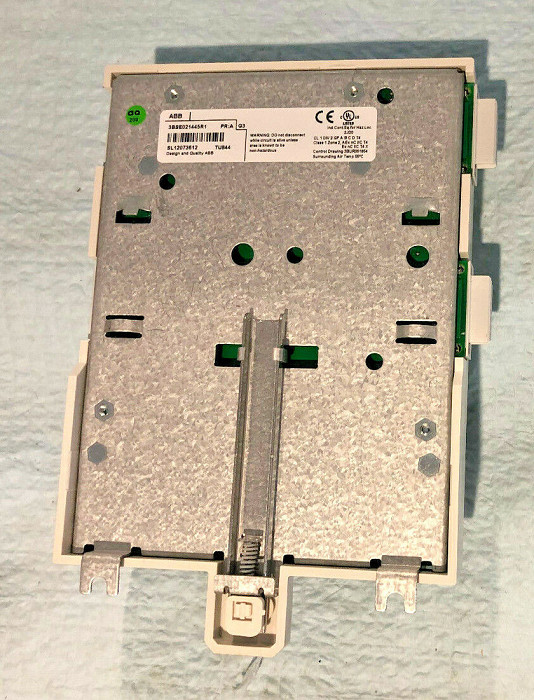

The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail.
Four mechanical keys, two for each I/O module, are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations.

Features:

• Product Name: ABB PLC Module
• 800S I/O, AC800M, Industrial Automation
• Warranty: 1 Year
• Humidity: 5% To 95%
• Weight: 0.5kg
• Communication Protocol: Modbus, Profibus, Ethernet, Etc.
• Programming Language: Structured Text, Ladder Diagram, Etc.

Technical Parameters:

Applications:

The ABB PLC Module, model number TU844, is a reliable, high-performance device designed to help automate industrial processes, machines, and facilities. It is manufactured by the world-renowned ABB brand, and certified with COC from Switzerland. This module has a wide range of applications and is compatible with the AC800M series. It has a wide operating temperature range of -20℃ to +60℃, and a weight of 0.5kg. The communication protocols that this module supports include Modbus, Profibus, Ethernet, etc. It also has an input current of 1A. Due to its great performance and stability, the ABB PLC Module is widely used in industrial applications.

The minimum order quantity for the ABB PLC Module is 1 unit. The price is subject to inquiry. It is packaged in its original package and will be delivered within 3-5 days after payment is received. The payment terms are T/T only. ABB has an adequate supply of this module to meet the demands of customers.

Customization:

Product Name: ABB PLC Module
Brand Name: ABB
Model Number: TU844
Place of Origin: Switzerland
Certification: COC
Minimum Order Quantity: 1
Price: inquiry
Packaging Details: original package
Delivery Time: 3-5 days
Payment Terms: T/T Only
Supply Ability: Adequate supply
Storage Temperature: -40℃ To +85℃
Output Current: 1A
Weight: 0.5kg
Humidity: 5% To 95%
Features: Analog I/O Module, 800S I/O, PLC Programmable

Support and Services:

ABB PLC modules are designed to be reliable and efficient solutions for automation needs. To ensure optimal performance and help customers get the best out of their products, ABB offers technical support and service for all its PLC modules.

Technical support is provided in the form of online resources, including troubleshooting guides, manuals, product documentation, and training courses. In addition, customers can contact our technical support team via email or phone for assistance with any product inquiries or issues.

ABB also provides on-site service, which includes installation, maintenance, and repair of PLC modules. Our experienced service technicians can identify and address any problems quickly and efficiently, helping customers get their systems back up and running in no time.

For more information about ABB PLC module technical support and service, please visit our website or contact us directly.

Packing and Shipping:

ABB PLC Module products are packaged in a cardboard box with foam cushioning inside. The box should be labeled with the product name, part number, and weight. The box should also be sealed with tape, and the tape should be marked with the product name and part number.

The product should be shipped via a reputable courier service, or if possible, be hand-delivered. The product should be insured for its full value, and the shipment should be tracked to ensure it arrives safely.
